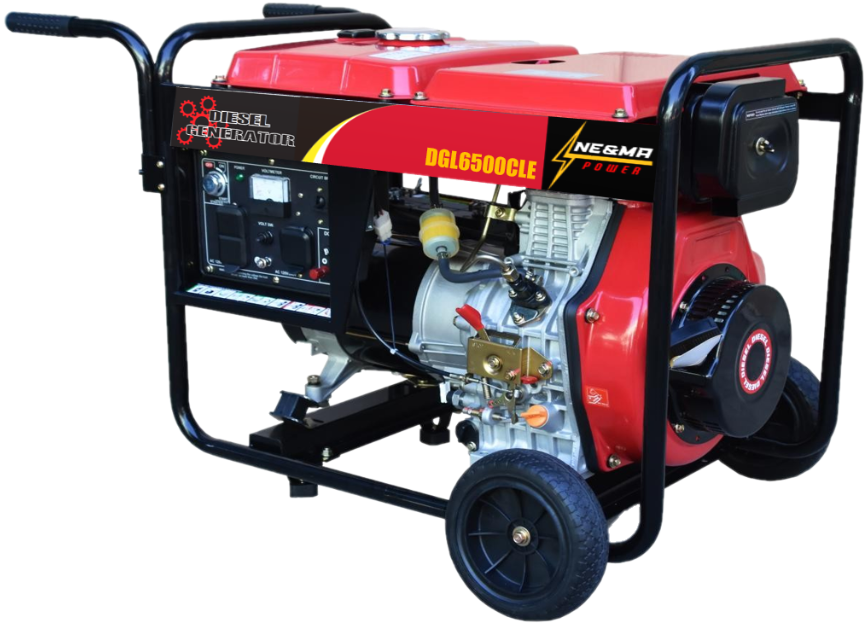

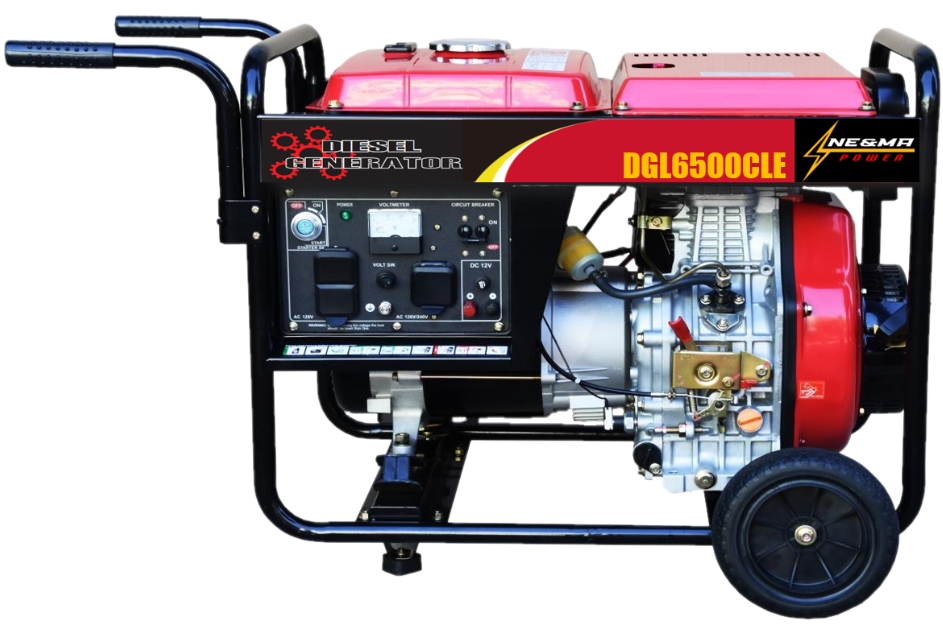

DGL6500CLE

DGL6500CLE

Voltage(V) / Amp

120-240VAC / 45.8 A – 22.9 A

Frequency (Hz)

60

Rated AC Output (kW)

5.5

Max. Output AC (kW)

6

Power Factor cos¢

1

Output DC (V/A)

12vdc /6 A

Engine Model

MDLA188

Type of Engine

Motor diésel de 4 tiempos, mono cilíndrico, refrigerado por aire

Ignition system

Eléctrico con batería / Manual con jalador

Displacement (cc)

474cc

Engine power

11 Hp

Engine Speed (rpm)

3600

Lubricant Capacity (L

1.65 (15W-40)

Fuel Tank CapacityL

12

Hours of continuous operation (h)

5

Fuel consumption (g/kW h)

288

Noise (7 meters away) dB(A)

82

DimensionL×W×H)(mm)

740×475×590

Net weight (recoil)(kg)

100

Packaging dimensión (L×W×H)(mm)

780×555×650

Total weight (kg)

110

Opcional

CABIN TO LOWER NOISE LEVEL
